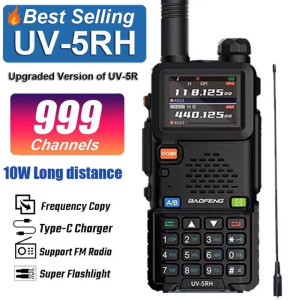

Baofeng UV-5RH 10W Multi-Band / Tri-Band 2500mAH VHF/UHF Long Range Walkie Talkie Two Way Radio NA-771 Antenna

BAOFENG
SKU:
BFBUN5RHN771-BFBUN5RHTRN771
$84.05 $42.02
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 2 - 3 and get 3% off
  • Buy 4 - 5 and get 5% off
  • Buy 6 or above and get 7% off
(2 reviews)
Condition:
New
Current Stock:
Adding to cart… The item has been added

2024 New Radio: Baofeng UV-5RH 10W Multi-Band / Tri-Band 2500mAH VHF/UHF Long Range Walkie Talkie Two Way Radio



BAOFENG Radio UV-5RH

Baofeng Walkie Talkie UV-5RH 10W 2500mAH Multi-Band / Tri-Band High Power 5th Gen Chip Two Way Radio Talkie Walkie Long Range Dual Band FM 999 Canais Handheld HF Transceiver Two Way Radios

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

VHF/ UHF Two-Way Radio Feature

Features and Functions

●Frequency range:


Version 1 - Multi Band
FM radio 76-108 MHz; AM aviation frequency band: 108-136MHz (RX)
VHF1: 144-148MHZ (RX&TX) ; VHF2: 200-260MHz (RX)
UHF1: 430-440MHz (RX&TX) ; UHF2: 350-390MH2 (RX)


Version 2 - Tri Band
136-174 / 220-260 / 400-520MHz

●One touch search frequency, easy pairing and grouping (copying channel configuration parameters)
●Frequency step, selectable between 2.5K 15.0K I 6.25K I 10.0K |12.5K | 20.0K | 25.0K | 50.0K
●Frequency hopping and scramble functions to keep your call privacy confidential
●1.77" TFT large screen, full keyboard, fully open menu operation
●Channel scan, frequency scan, and three scan and recovery methods: TO, co, and SE
●Up to 999 memory channels.
●Broadcast FM radio receiver 76- 108 MHz
●Power-on password management function
●Dual watch / Dual reception/ Dual band handheld transceiver
●DTMF encoder and DTMF manual dial
●High Capacity Lithium-lon battery.
●VOX (voice activated transmit).
●Stopwatch function
●Alarm function.
●Display ilumination programmable via keypad.
●High or low power selectable.
●Function beep on the keyboard.
●Programmable repeater offset.
●Battery save function.
●Transmission time out timer.
●Busy channel lock out.
●LED fashlight.
●End of transmission tone, aka "Roger Beep"
●Ten (10) levels of Squelch adjustment.
● Two (2) pins for Kenwod acessry port
● Support NOAA weather reception function in the United States and Canada

Product parameters
Baofeng Brand
Model Baofeng UV5RH
Output power <=10W
High/Low TX power selectable 10W/1W
Battery capacity 2500mAh / 18.5Wh
Battery type Li-ion battery
Rated Voltage 7.4V DC±10%
999 channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Time-out Timer (TOT) 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
Voice companding 50 CTCSS/104 DCS
High/Low TX power selectable Busy channel lock-out(BCLO)
DTMF function OFF SET function
Wide/Narrow Band(25kHz/12.5kHz) A/B band independent operation(UV UU VV)
VOX function Yes
Busy lockout function Yes
Scanning function Yes
Time-out Timer (TOT) function Yes
Battery voltage display function Yes
Channel name display and editing functions Yes
Signal strength indicator Yes
FM radio Yes
Emergency alarm function Yes
Antenna Impedance 50ohm
Weight 255g
Frequency stability ±2.5ppm
Carier wave tolerance 5ppm
Modulation 16kØF3E / 11kØF3E
Max frequency deviation < 5kHz(Wide)
< 2.5kHz(Narrow)
Modulation character 6 dB per fold frequency patch
Emission current < 1.6A(5W)
CTCSS / DCS 0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)
Sensitivity < 0.16µV(12dB SINAD)
Silent sensitivity < 0.2µV
Intermediation Distortion <10%
Inter modulation 8-12mv
Adjacent channel selectivity ( wide/narrow) <-65dB(Wide) <-60dB(Narrow)

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Package Include:
1 x UV-5RH 10W Multi-Band / Tri-Band Walkie Talkie
1 x Rubber Long Antenna
1 x Li-ion Battery pack
1 x Desktop Charger
1 x Belt Clip
1 x The sling
1 x User's manual

1 x NA-771 Antenna

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

Baofeng UV-5RH 10W Tri-Band Walkie Talkie - Long Range, 2500mAh Battery, VHF/UHF, Airsoft, Hiking, Camping

24 months Warranty
