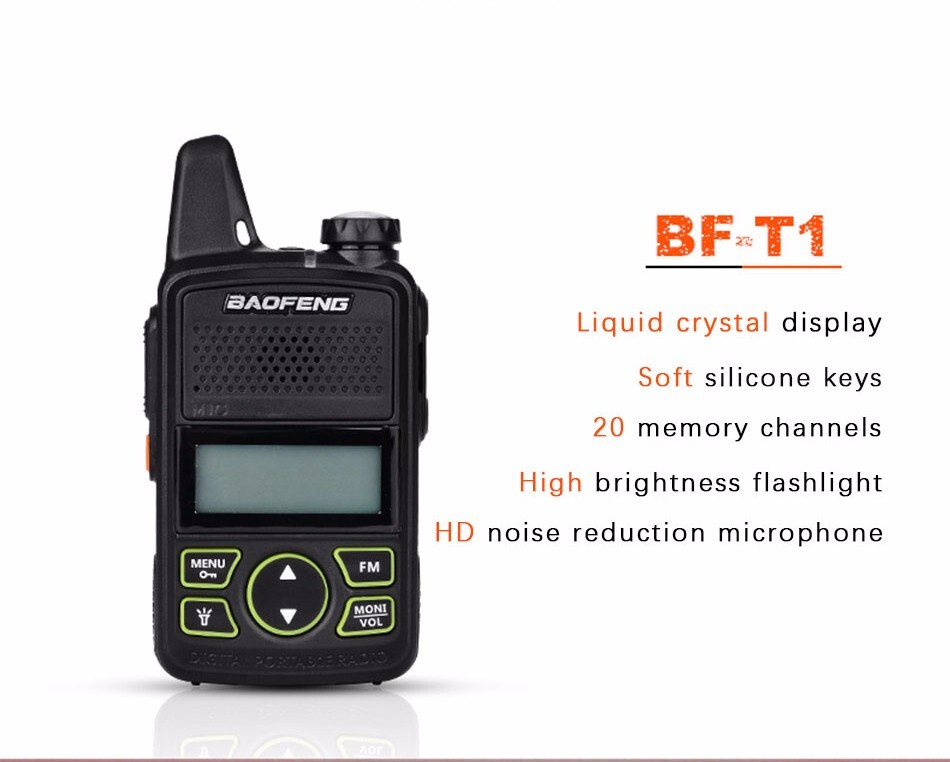

BF-T1 Mini Walkie Talkie UHF 400-470MHz Two Way Ham Radio + Programming Cable

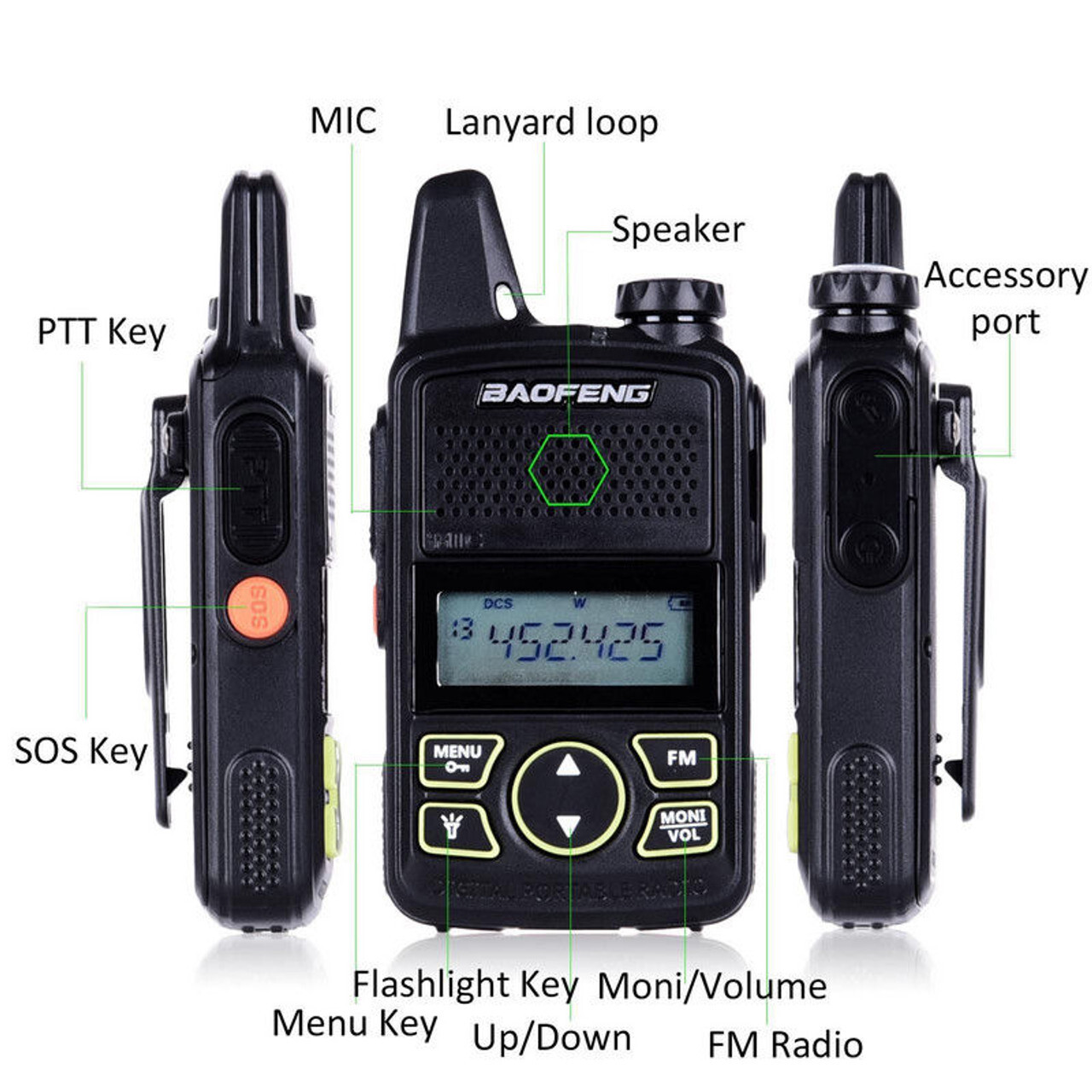

BAOFENG T1 Radio
The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability
Feature

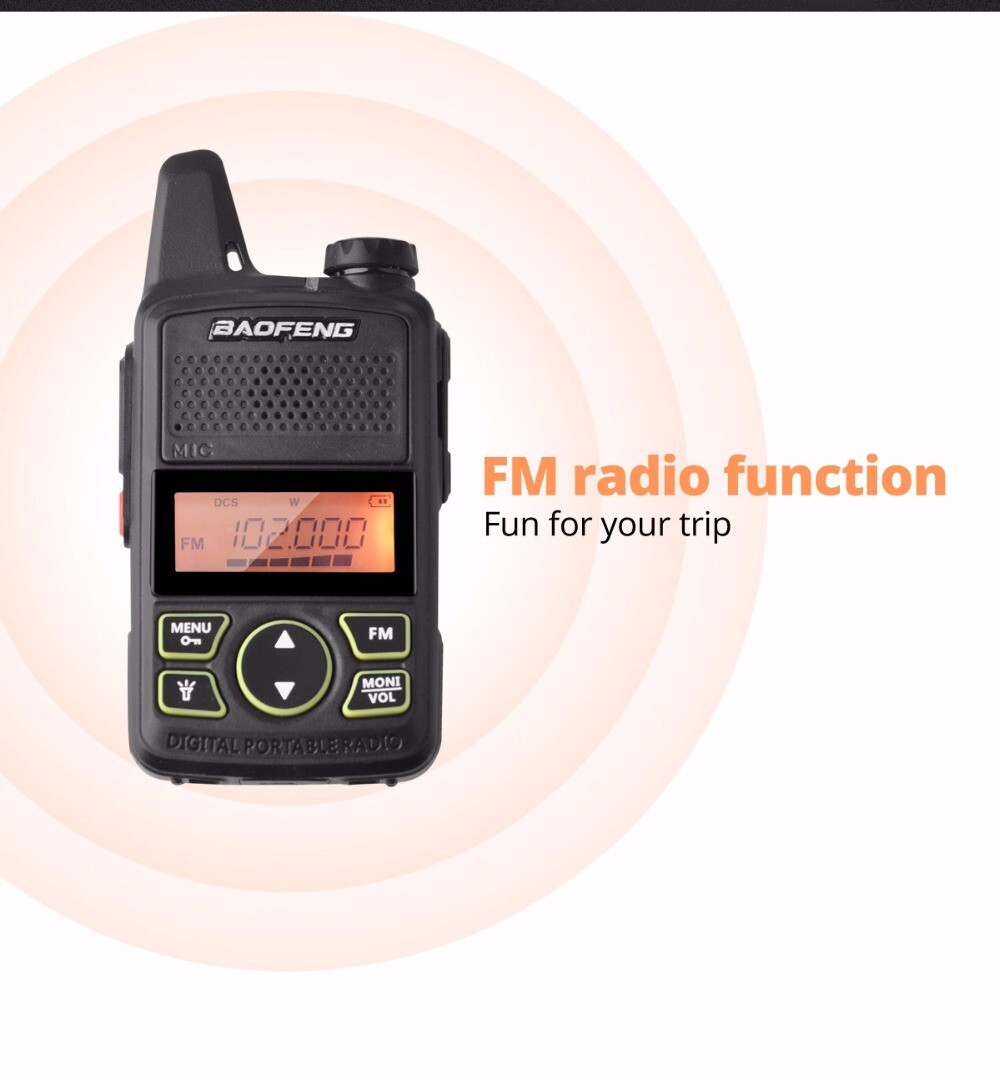

- Broadcast FM radio receiver (65-108Mhz)

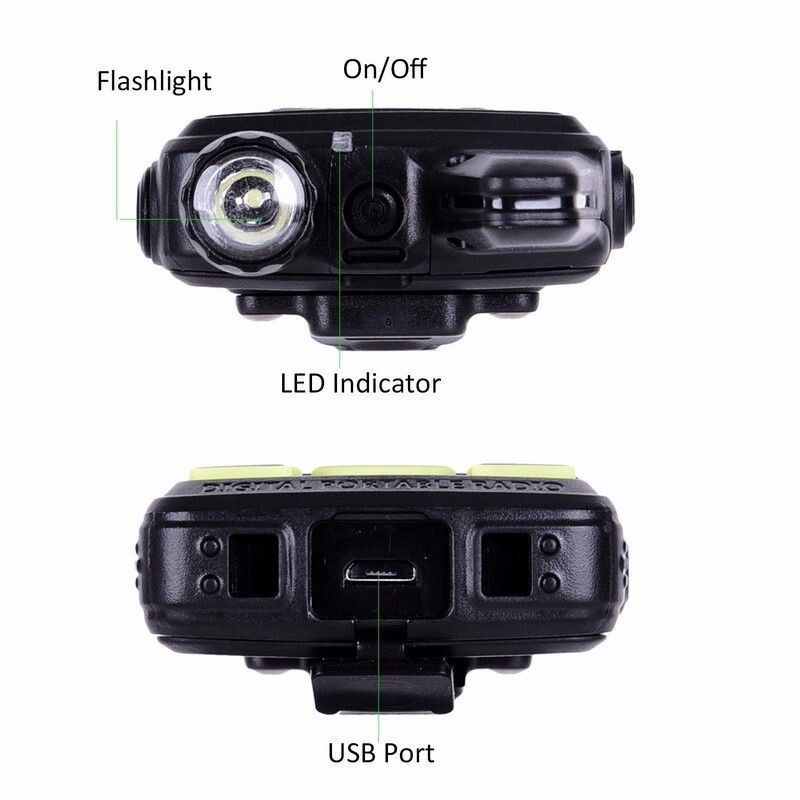

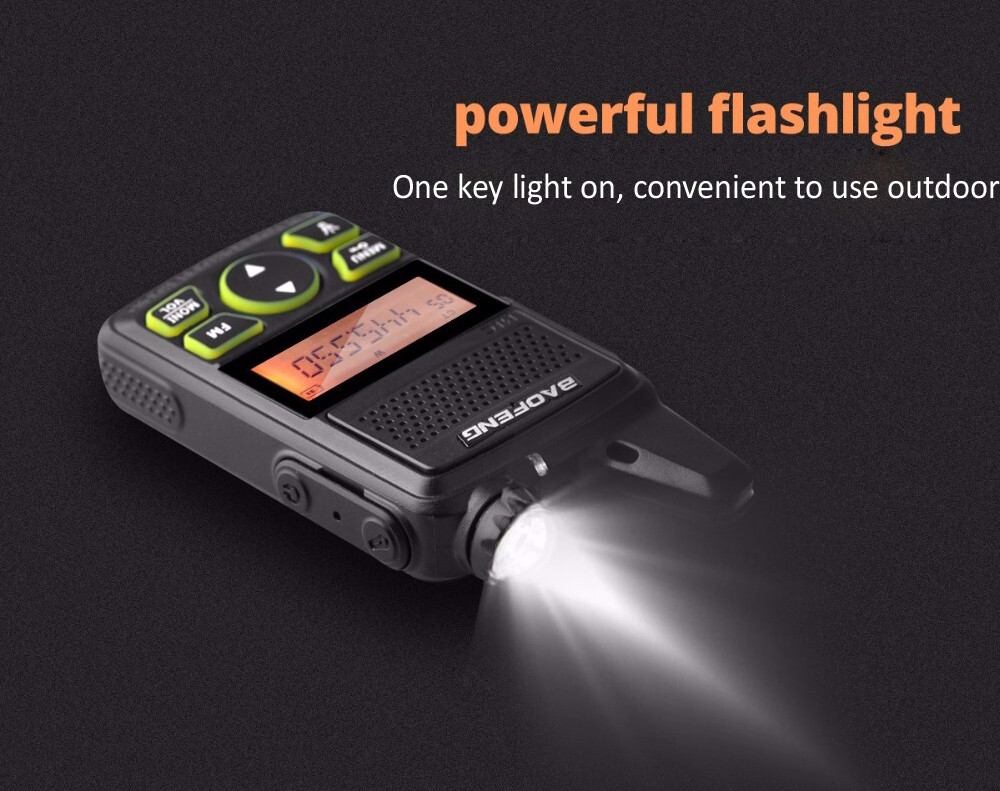

- Alarm and built-in LED flashlight

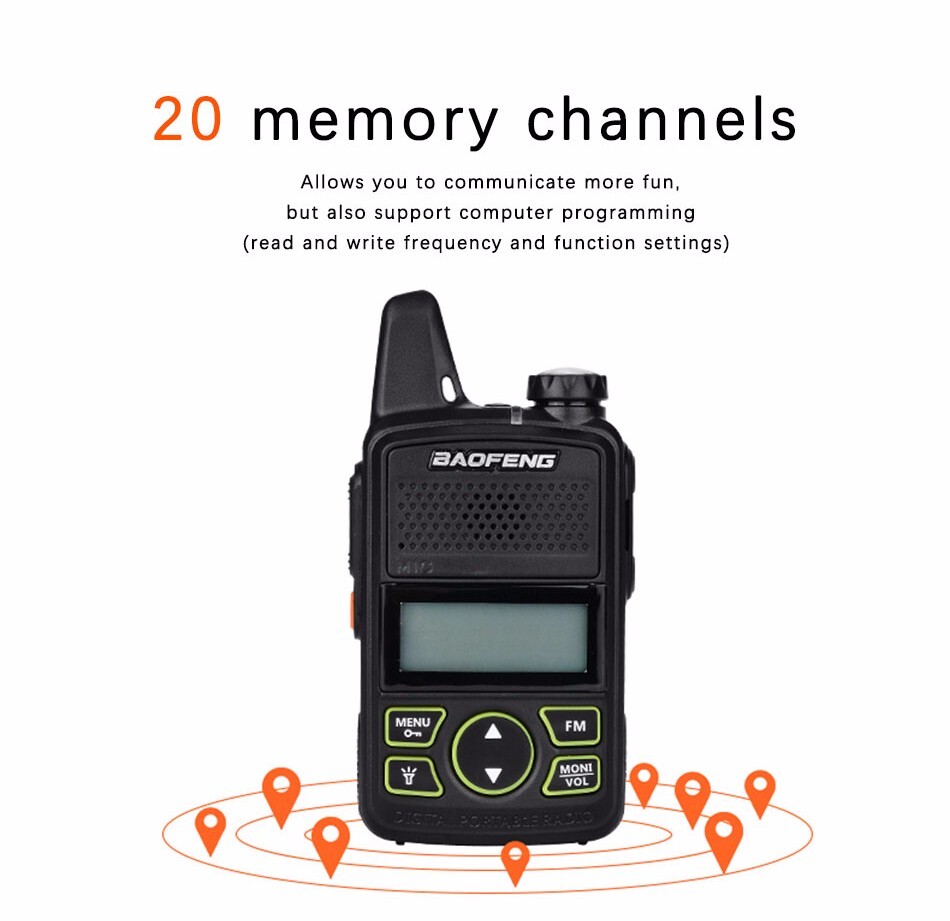

- Max 20 channels
- Time count down (0.5 / 1hr / ... / 8hrs)
- Voice prompt
- VOX (voice activated transmission)
- 50 CTCSS tone / 104 DCS code / nonstandard tone available
- Tail tone elimination

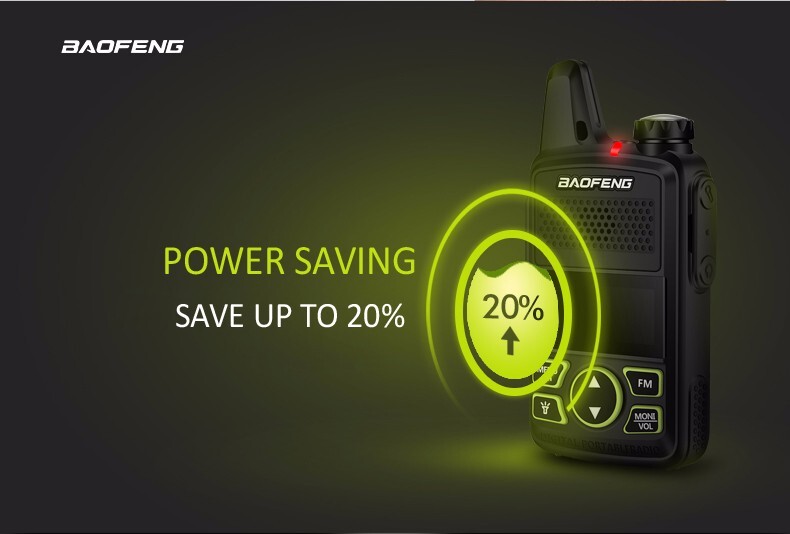

- Battery saving
- Width / Narrow band selection

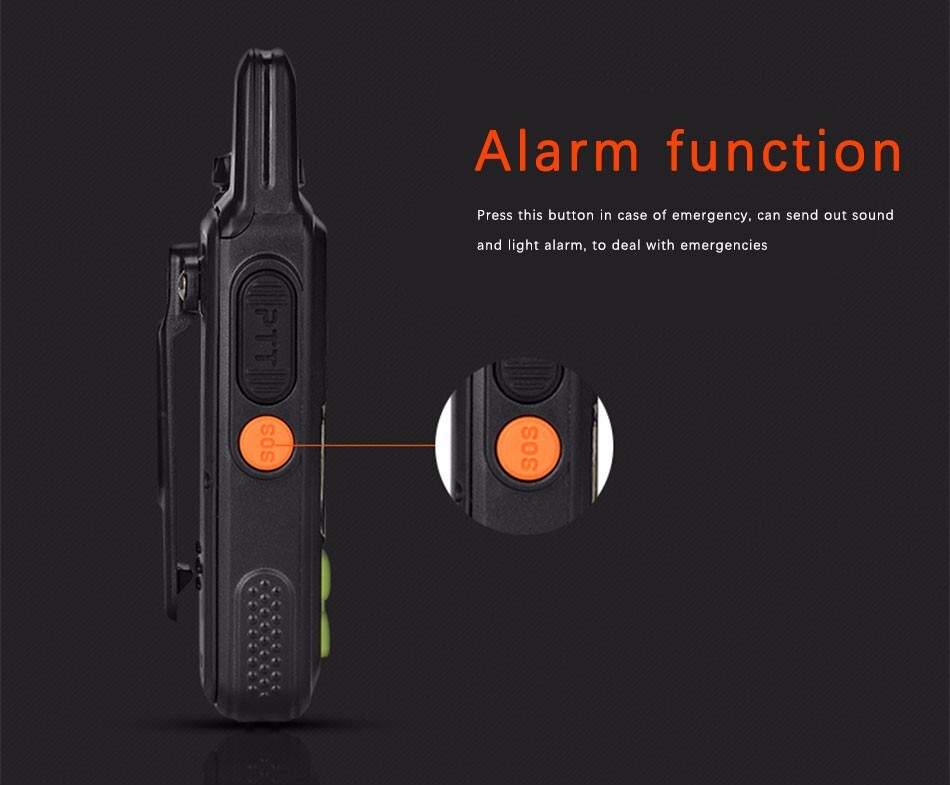

- SOS call notice
- PC programming
| General | |
| Frequency Range | UHF: 400-470MHz |
| Channel No. | 20 |
| Frequency Stability | ±2.5ppm |
| Step Frequency | 12.5 / 25Kz |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 3.7V |
| Work Temperature | -20C to +60C |
| Battery Capacity | H-1500mAH (Li-ion battery) |
| Battery Life | About 12 Hours |
| Dimension W x H x D | 108 x 55 x 21 mm including antenna |
| Weight | 99g |
| Transmitter | |
| Output power | 0.5W / 1W |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | ≤5kHz(Wide) /≤2.5kHz(Narrow) |
| Spurious Radiation | ≤7.5μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Audio Distortion | < 5% |
| SNR | ≥ -45dB / ≥ -40dB |
| CTCSS/DCS Frequency deviation (W/N Band) | 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mV |
| Transmitting Current | ≤ 1000mA |
| Receiver | |
| Sensitivity | < 0.25μ V (12dB SINAD) |
| Audio Power | 1W |
| Inter modulation Interference Resistance | ≥ 65dB (W) , ≥ 60dB (N) |
| Adjacent channel Selectivity (W/N Band) | ≥ 65dB (W) , ≥ 55dB (N) |
| Audio Distortion | 5% |
| Receiving current | ≤ 380 mA |
Package Include:
-1 x Baofeng BF-T1 Mini Walkie Talkie
-1 x 3.7V 1500mah Original Baofeng Li-ion Battery Pack
-1 x Antenna
-1 x Lanyard
-1 x Belt Clip
-1 x ENG Manual
-1 x USB Charging cable
-1 x PTT Earpiece for free
-1 x Programming Cable
UK LEGAL NOTICE: LICENSE REQUIRED
IMPORTANT: Unless this is a PMR446 (License-Free) model, this equipment requires a valid UK Amateur or Business Radio License for transmission. Transmission without a license is illegal. Reception (listening) is permitted.
